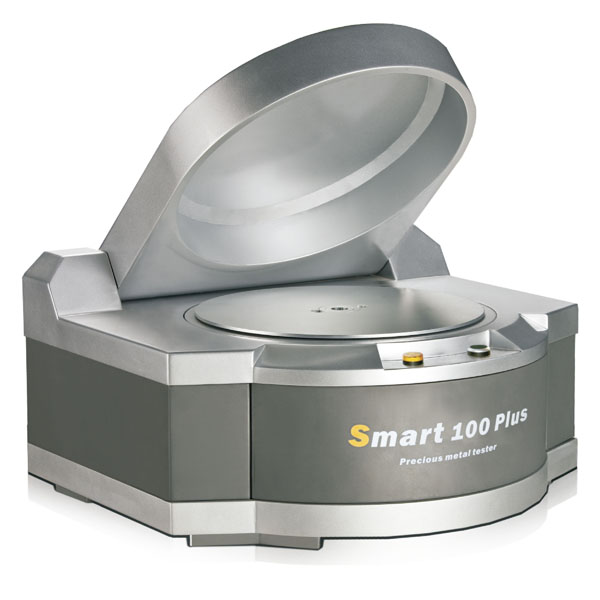

Smart 100 Plus X-ray Fluorescence Spectrometer

Smart 100 X-Ray Fluorescence Spectrometer is our most advanced instrument for Precious Metals Analysis. Thanks to new generation Silicon Drift Detector (X-SDD) and multi-channel technology, Smart 100 is able to analyze Precious Metals of all sizes and get accurate results in 2 seconds.

Features
  • Skyray most advanced detection technology - Silicon Drift Detector (X-SDD), with resolution as low as 125eV
  • Digital multichannel technology improves efficiency with 30 kcps countrate
  • High-power X ray tube and automatic collimation/filter system provides higher excitation efficiency
  • Optical shutter system improves test efficiency and accuracy

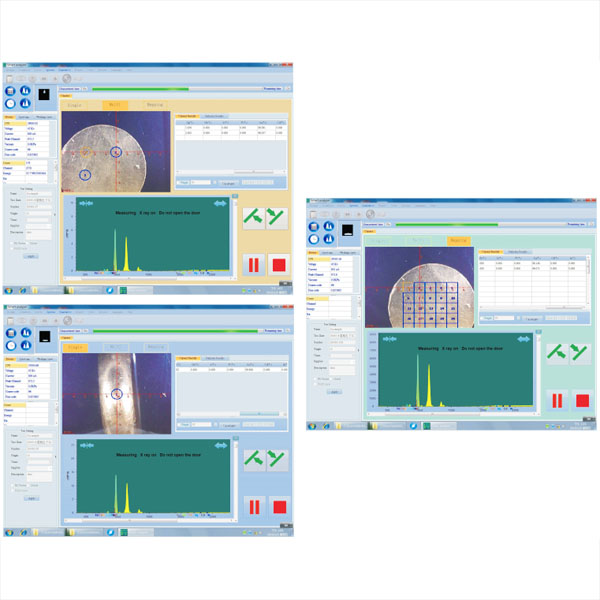

  • 2D movable sample platform - supports image control and multi-point testing
  • Detection of samples as small as 1 mm
Application Fields
  • Precious metal metallurgical plant and precious metal recovery
  • Jewelry stores and jewelry processing
  • Precious metals inspection, analysis and testing
Technical Specifications
Measurable elements: Sulfur ( S ) - Uranium ( U )
Measurement Accuracy as low as 0.03% for samples over 96% content
Analysis Range: ppm up to 99.999%
Work temperature: 10°C-35°C
Detector: X-SDD
Test time: 2-10 seconds
Power: AC 220V ± 5V or AC 110V ± 5V
X-Ray Tube Tube voltage(Max)-50Kv Tube current(Max):1mA
Size: 70cm x 62cm x 38cm
Weight: 100 kg
