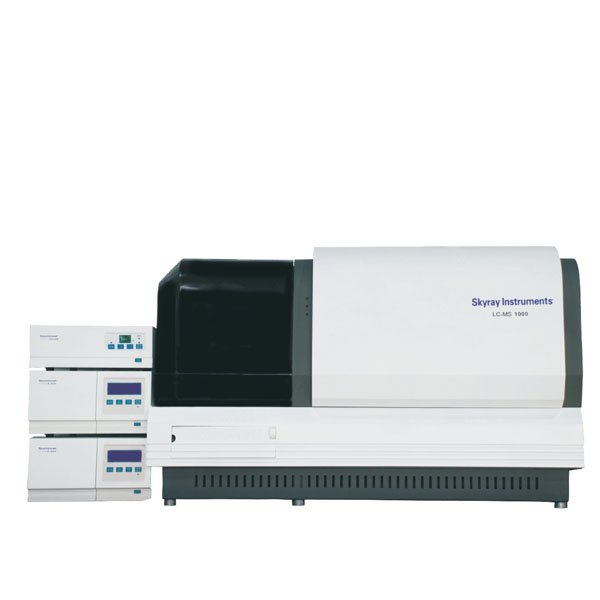

LC-MS 1000 Liquid Chromatograph Mass Spectrometer

LC-MS 1000 Liquid Chromatograph Mass Spectrometer is a commercial LC-MS system which meets the national standards for LC-MS and for determination of chemicals in food and environment. Our Patented heating technology and nebulizer gas technology help increase vaporization efficiency and background noise while increasing sensitivity. Powerful ChemAnalyst LC-MS chemical workstation software simplifies all operation procedures and advanced networking function enables remote control instrument and view test result

  • Quick scan speed (maximum 10,000 amu/s, bar chart);
  • Wide scan range (10-1100 amu)
  • High detection sensitivity
  • Auto calibration and tuning function

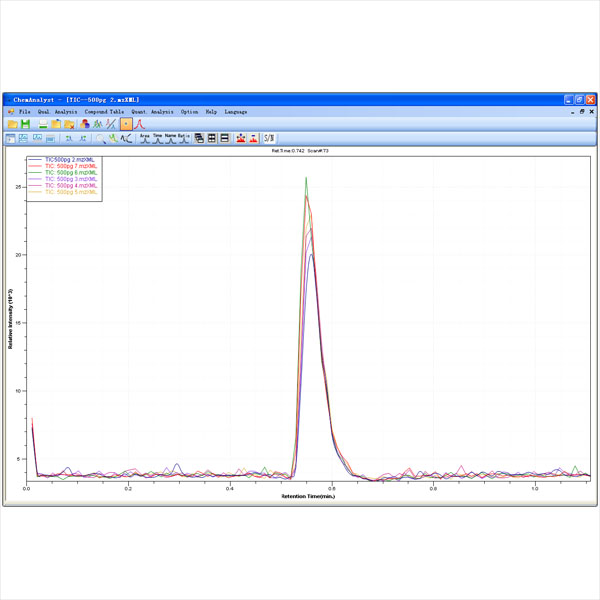

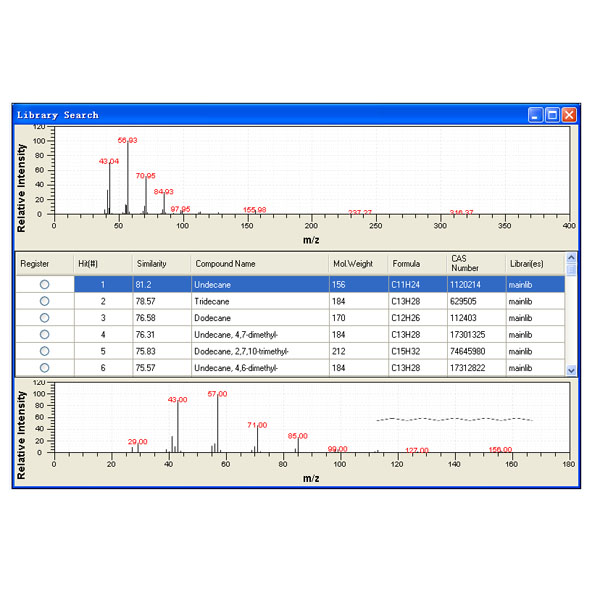

  • LC high pressure pump, auto sampler, thermostat, UV detector, mass spectrum control and data process are integrated in the software

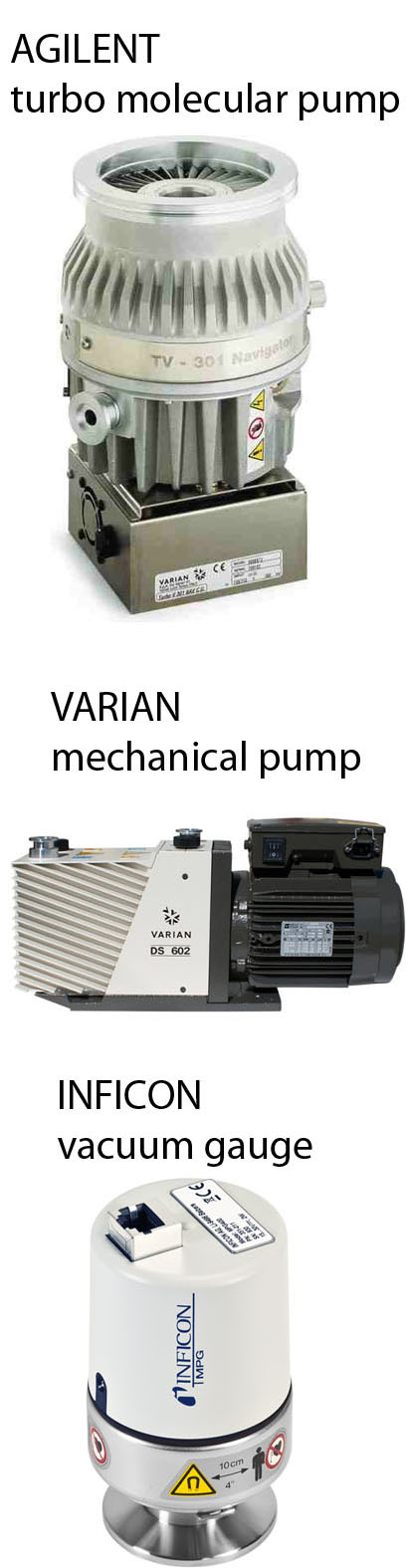

  • Wireless vacuum chamber
Application Fields
  • LC-MS 1000 is a necessary analytical tool for organism analysis lab, drug and food laboratory, production process control, quality control department, etc.
Technical Specifications
Mass Range: 10-1500 amu
Mass accuracy: ±0.20 amu (mass calibration range of scan mode)
Mass axis stability: ±0.2amu/12h (under constant temp. of ± 2°C)
Scan rate: standard mode: 1000 amu/s, fast scan mode: 10000 amu/s
Resolution: unit resolution (FWHM<-0.7amu)
SIM signal to noise ratio: ESI, 200 ul/min, SIM
Peak area Repeatability: RSD 4.6°/0
Retention time repeatability: RSD


Skyray Instruments specializes in the R&D, manufacturing and sales of analytical and measuring instruments in Spectroscopy, Chromatography and Mass Spectroscopy fields. Our Products include X-ray Fluorescence Spectrometry, Atomic Absorption Spectrometry, Gas Chromatography, Inductively Coupled Plasma Spectrometry, Mass Spectrometry and many others. With advanced research and development team Skyray has been providing customers around the world with reliable and affordable Scientific Instruments for more than 20 years
