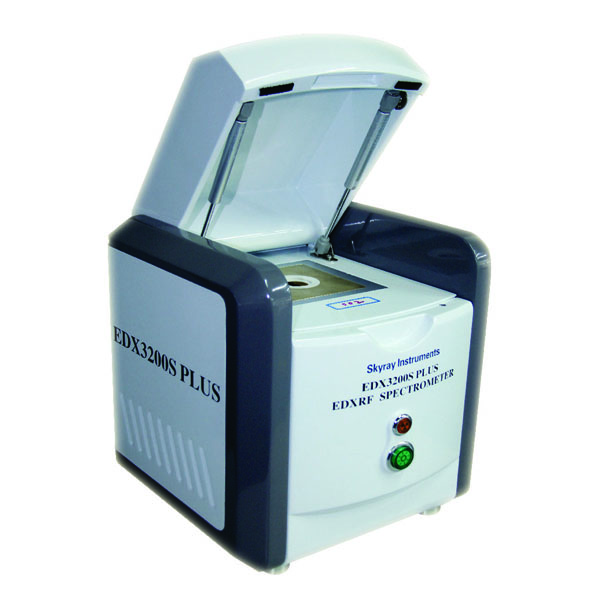

EDX3200S Plus X-ray Fluorescence Spectrometer

EDX 3200S Plus X-Ray Fluorescence Spectrometer is specifically developed for Sulfur in Petroleum Analysis. Thanks to Helium gas sealed sample chamber and SDD detector EDX3200S Plus is able to analyze up to 24 elements simultaneously in the range of Sulfur(S)- Uranium(U).

  • Portable design for on-sight or lab use
  • W-Target X-ray tube with SDD detector
  • Sealed Helium charge sample chamber
  • No sample preparation required
  • Heavy X-ray shielding
  • One-key operation
Application Fields
  • Petrochemical analysis
  • Crude oil analysis
  • Analysis of solids and liquids.
Technical Specifications
Measurable elements: Sulfur ( S ) - Uranium ( U )
Limits of Detection: 10 ppm (3 ppm with Helium gas)
Analysis Range: 3 ppm up to 99.999%
Work temperature: 10°C-35°C
Instrument Size: 37cm x 36cm x 42cm
Test time: 50-100s
Power: AC 220V ± 5V or AC 110V ± 5V
Detector: Electro-cooling Si-Pin Semiconductor Detector
Simultaneous analysis: maximum 24 elements
Weight: 30 kg
