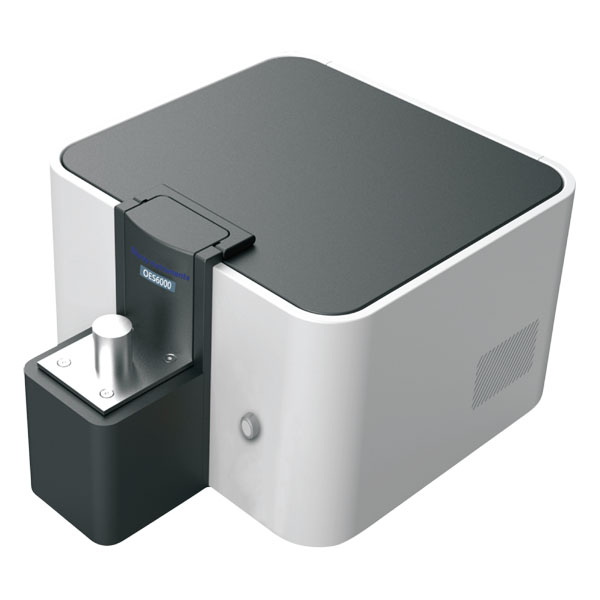

OES 6000 Optical Emission Spectrometer

Based on the Multi-CCD detector and total spectrum technology, OES 6000 Optical Emission Spectrometer is able to detect all the spectral lines within the wavelength range. OES 6000 Optical Emission Spectrometer features a new design which eliminates the need of a vacuum pump and vacuum sealed chamber for accurate analysis. Thanks to its compact size, OES 6000 is a convenient instrument for the analysis of ferrous and nonĀ¬ferrous metals.

  • High end Components- CARL ZEISS Grating and Optical lens, Toshiba CCD Detector & Agilent Optical Fiber
  • Polychromator operates without need of vacuum pump
  • Fast analysis: 35 seconds testing
  • Excellent reliability and repeatability- 24/7 operation
  • Compact Size
Application Fields
  • Metallurgy, steel, ferrous & non-ferrous metals
  • R&D, process control, inspection and sorting.
  • Metal smelting, metal casting and processing industry
Technical Specifications
Polychromator Paschen-Runge Polychromator
Chamber: Special casting materials reduce the deformation of the chamber
Grating: Holographic concave grating- 3600 l/mm
Wavelength range: 200-500 nm.
Detector: High-performance linear array CCD
Analysis time: less than 30 seconds for most tests
Spark Source Digital plasma generator with high energy pre-spark (HEPS)
Spark Frequency 100-1000Hz
Spark Current 1-80A
Size/weight: 30cm x 50cm x 45cm, weight: 30kg
