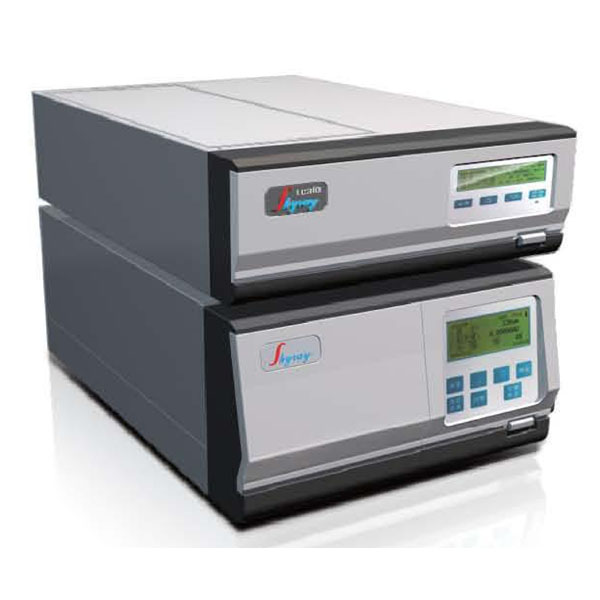

LC-310 Liquid Chromatograph

Based on years of comprehensive experience in research and development, LC-310 Liquid Chromatograph achieves the best balance in performance and stability. LC-310 High-performance Liquid Chromatograph features improved separation, sensitivity, speed, accuracy and stability. Advanced series pump and check valve ensure the user can achieve the accuracy and pulsation of solvent delivery.

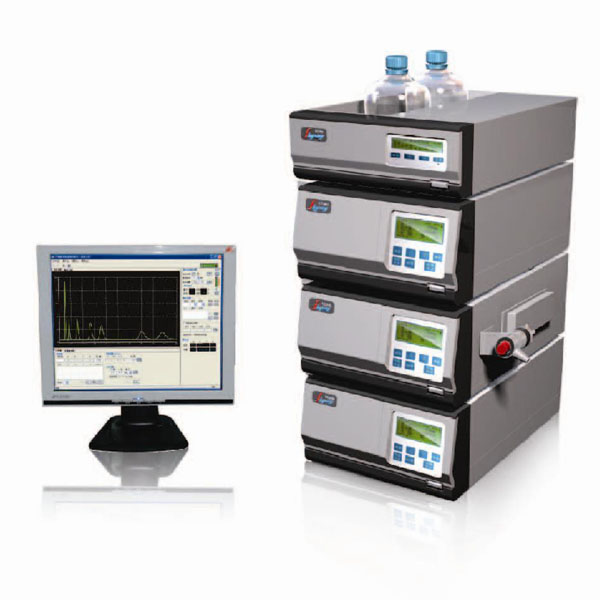

Main Configuration
  • Standard P100 high pressure constant flow pump
  • UV100 UV detector
  • 7725i manual injector
  • Exformma Pronaos Series chromatographic column

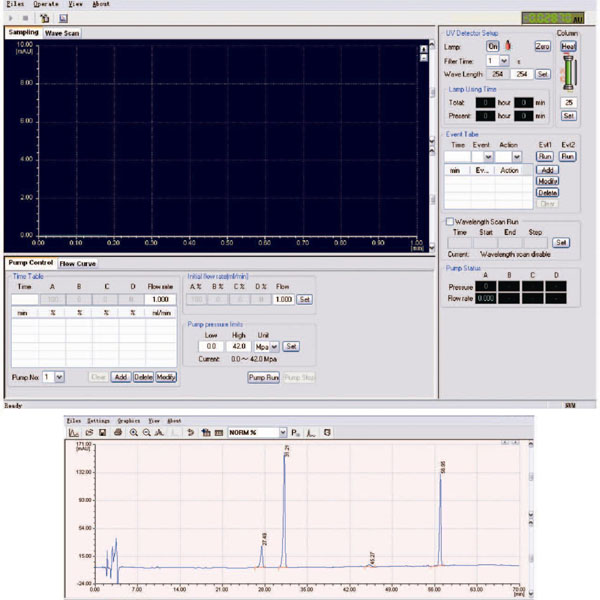

  • WS100 workstation software
Application Fields
  • Science and Education
  • Agriculture and food industries
  • Pharmaceutical and petrochemical industries
Technical Specifications
Flow rate Control Range: 0.001~9.999mL/min(step adjustable flow rate:0.001mL/min)
Flow rate stability : Sr≤0.3% RSD<0.006%
Specification Error: SS≤2%(Flow rate 1mL/min, pure water, pressure 5~10Mpa, room temperature)
Pressure linearity and test accuracy: indicates pressure error smaller than 0.5Mpa (0~42MPa):
Pulse pressure: ≤0.1MPa (Flow rate 1mL/min, pressure 5~10Mpa)
Maximal operating pressure: 42MPa(flow rate: 0.001~9.999mL/min)
UV detector wavelength range: 190-680nm ≥ 106
Spectral bandwidth: 8nm
Minimum detectable concentration: 1 X 10-8g/ mL


Skyray Instruments specializes in the R&D, manufacturing and sales of analytical and measuring instruments in Spectroscopy, Chromatography and Mass Spectroscopy fields. Our Products include X-ray Fluorescence Spectrometry, Atomic Absorption Spectrometry, Gas Chromatography, Inductively Coupled Plasma Spectrometry, Mass Spectrometry and many others. With advanced research and development team Skyray has been providing customers around the world with reliable and affordable Scientific Instruments for more than 20 years
