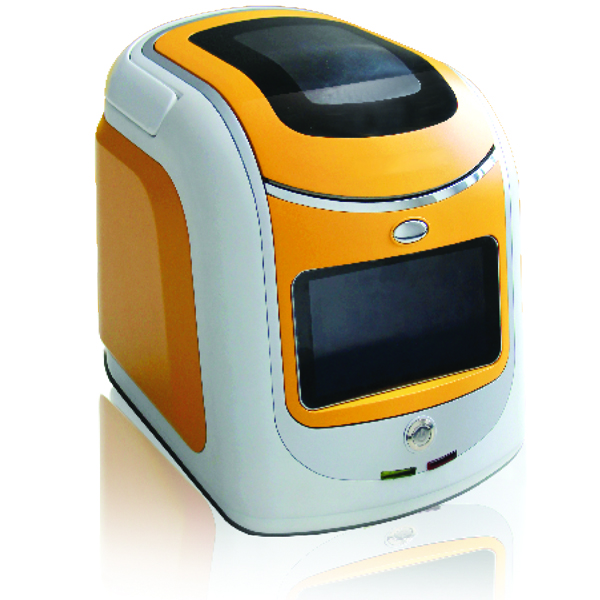

Cube 100 Portable X-ray Fluorescence Spectrometer

Skyray Instruments Cube 100 X-Ray Fluorescence Spectrometer combines Desktop XRF Spectrometer performance and accuracy with a convinient portable design. Cube 100 features large high-resolution LCD and new digital signal processor. Small, lightweight and portable, Cube 100 XRF offers fast and reliable elemental analysis on the factory floor or in the field.

Cube 100 XRF features Skyray newest intelligent software, making a Cube 100 X-Ray Fluorescence Spectrometer as easy as your everyday appliances. Specifically developed to simplify operation and user involvement most users can now learn how to operate the instrument in minutes. Skyray Intellectualized software is used across all applications modes.

Software Options
  • Elemental Analysis Software
  • RoHS Software for Hazardous Substances
  • Precious Metals Software
  • Rapid nondestructive detection and quick measurement
  • Automatic collimators and filters make Cube 100 able to analyze different applications and ensure the instrument can meet many testing requirements
  • Convinient test stand allows more flexibility when testing different samples
  • Users can observe samples position at any time thanks to built-in 5 mega-pixels HD camera
  • Portable, compact and lightweight design
Technical Specifications
Measurable elements: Sulfur(S) to Uranium (U)
Accuracy 0.05 %
Analysis Range: 1 ppm-99.99%
Test time average test time 30 seconds, testing can be set by user from 5 to 90 seconds
Dimensions: 21 X 26 X 26 cm
Sample Chamber Dimensions: 15 x 15 x 10 cm
Detector Si-Pin or optional SDD
Sample types Solids, powders
X-Ray Tube 40 kV 100uA
Weight: 4.5 kg


Skyray Instruments specializes in the R&D, manufacturing and sales of analytical and measuring instruments in Spectroscopy, Chromatography and Mass Spectroscopy fields. Our Products include X-ray Fluorescence Spectrometry, Atomic Absorption Spectrometry, Gas Chromatography, Inductively Coupled Plasma Spectrometry, Mass Spectrometry and many others. With advanced research and development team Skyray has been providing customers around the world with reliable and affordable Scientific Instruments for more than 20 years
