AAS9000 Flame and Graphite Furnace Atomic Absorption Spectrometer

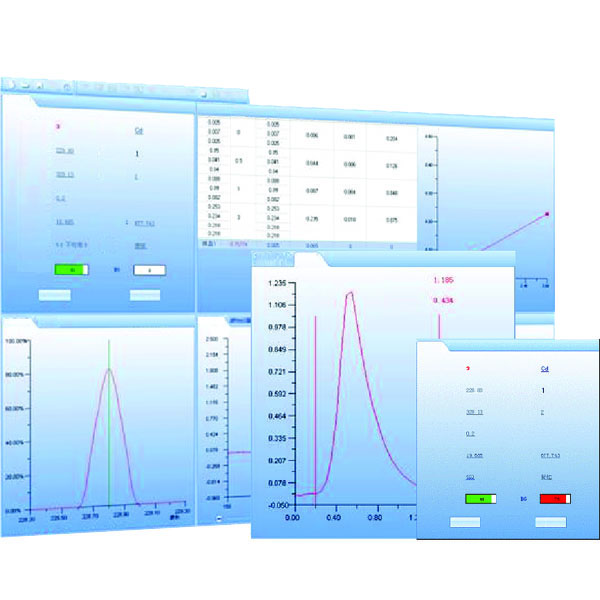

AAS 9000 Integrated Atomic Absorption Spectrometer combines flame and graphite atomizers, incorporating both Flame and Graphite Furnace features. With Skyray state-of-the-art user friendly software users can switch atomizers quickly and automatically based on their needs. Users can also choose a cost effective AAS 9000-M option which comes without graphite furnace autosampler.

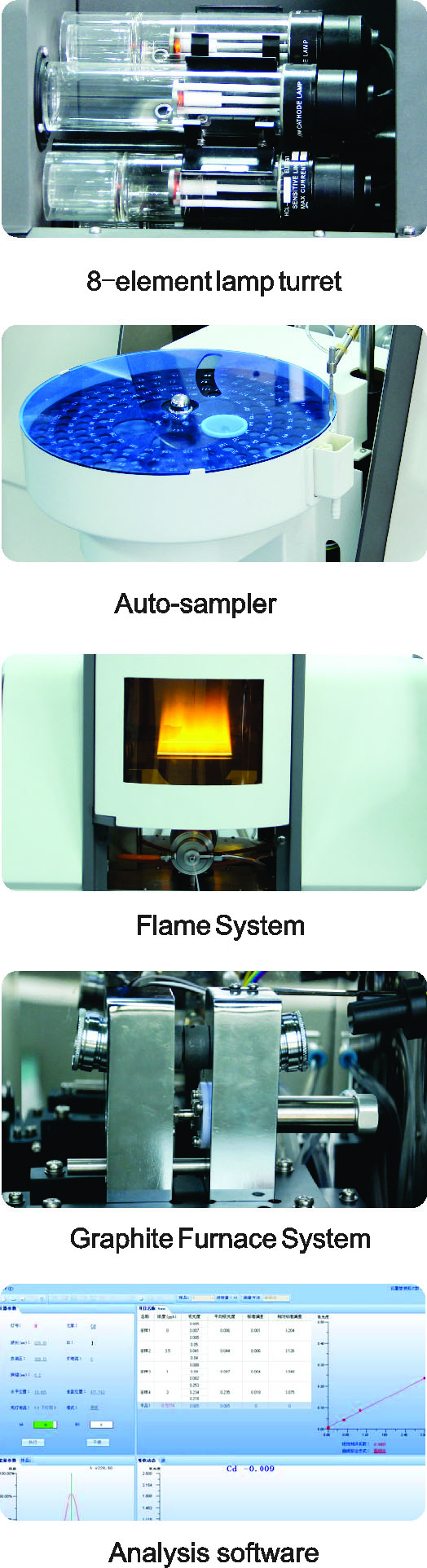

  • All 8 lamps have individual power supplies. During operation 7 lamps are preheated simultaneously while the other lamp is working-thus dramatically reducing lamp switching and preheating.
  • C2H2 analysis and flame measurement: full reflection and corrected aberration
  • Fully automatic operation
  • 8 element lamps
  • Safety protection of gas circuit
  • 230nm grating blazed wavelength, enhanced ultra-violet zone sensitivity
  • 1800 g/mm grating density and optimized resolution
Application Fields
  • Geology, minerals, metallurgy, steel, non-ferrous metals
  • Environmental analysis: air, water quality, soil and solid waste
  • Petrochemical industry and light industrial products, crude oil and additional products
  • Food, biomedicine and health products
  • Building materials (glass, ceramic, paints, etc.)
Technical Specifications
Optical system: No lens, concave lens, total reflection, achromatic optical system
Monochromator: Czerny-Turner
Grating: 1800 lines/mm
Slit: auto-switch 0.1,0.2,0.4,0.7, 1.4nm
Detector: Photomultiplier
Light source: > 8-element lamp turret
Size/weight: 130cm x 56cm x 53cm, weight: 165kg
Graphite Furnace System Specifications
Safety protection: monitoring with automatic shut-off: furnace temperature / graphite tube temperature / cooling flow / system gas pressure
Graphite Tube: Pneumatic
Furnace temperature control: multiple user modes
Autosampler Automatic
Flame System Specifications
Safety protection: System leakage/ System pressure/ Burner monitoring with automatic shut-off
Combustion system: Atomizer, Pure Ti Atomizing Chamber & Burner
Flame Atomiser positioning Software controlled horizontal and vertical positioning
Discharge System: Automatic
