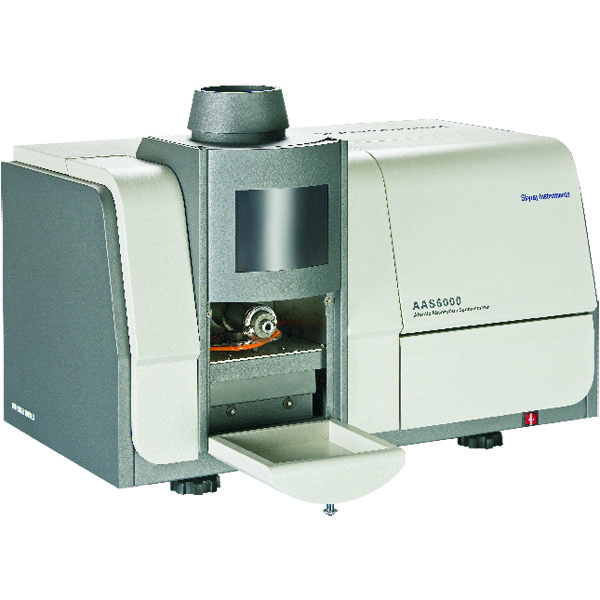

AAS 6000 Flame Atomic Absorption Spectrometer

AAS 6000 Flame Atomic Absorption Spectrometer- Flame atomic absorption is applied to micro and trace metallic elements testing, covering over 30 elements including Cu, Zn, K, Na, Au, Ag and others. Skyray AAS6000 Atomic Absorption Spectrometer features fast lamp switching for convenient operation. With simple structure and great testing speed AAS6000 Flame AAS is a powerful and reliable tool for micro trace analysis.

Features
  • All 8 lamps have individual power supplies. During operation 7 lamps are preheated simultaneously while the other lamp is working-thus dramatically reducing lamp switching and preheating.
  • C2H2 analysis and flame measurement: full reflection and corrected aberration
  • Fully automatic operation
  • 8 element lamps
  • Safety protection of gas circuit
  • 230nm grating blazed wavelength, enhanced ultra-violet zone sensitivity
  • 1800 g/mm grating density and optimized resolution
Application Fields
  • Geology, minerals, metallurgy, steel, non-ferrous metals
  • Environmental analysis: air, water quality, soil and solid waste
  • Petrochemical industry and light industrial products, crude oil and additional products
  • Food, biomedicine and health products
  • Building materials (glass, ceramic, paints, etc.)
Technical Specifications
Optical system: No lens, concave lens, total reflection, achromatic optical system
Monochromator: Czerny-Turner
Grating: 1800 lines/mm
Slit: auto-switch 0.1,0.2,0.4,0.7, 1.4nm
Detector: Photomultiplier
Light source: > 8-element lamp turret
Size/weight: 87cm x 56cm x 60cm, weight: 100kg

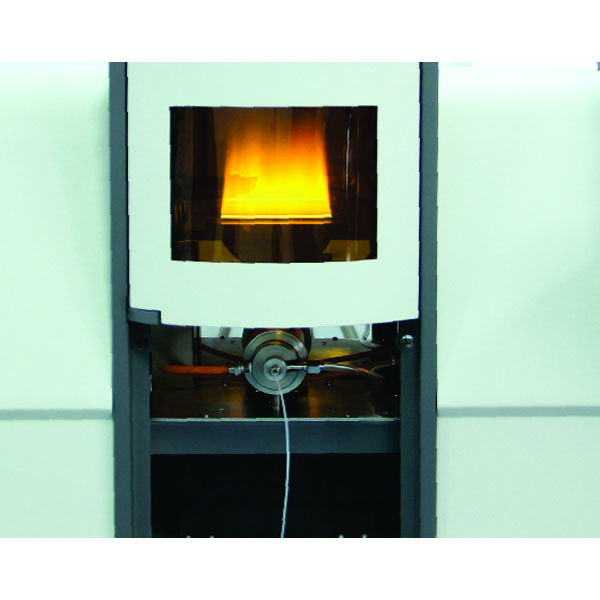

Flame System Specifications
Safety protection: System leakage/ System pressure/ Burner monitoring with automatic shut-off
Combustion system: Atomizer, Pure Ti Atomizing Chamber & Burner
Flame Atomiser positioning Software controlled horizontal and vertical positioning
Discharge System: Manual
