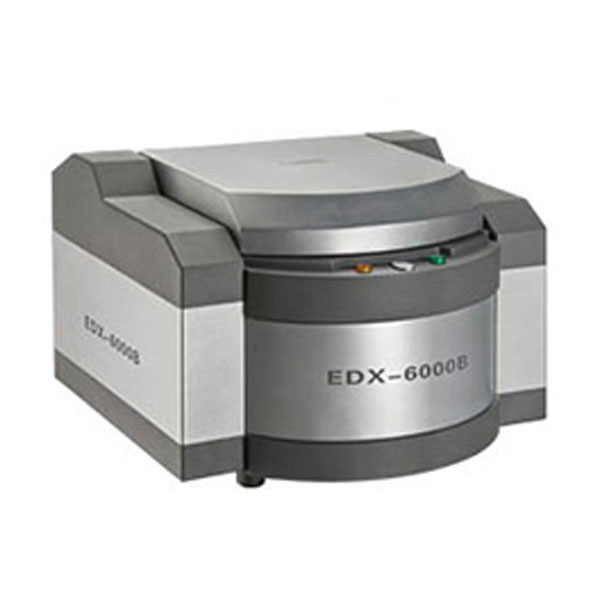

EDX6000B X-ray Fluorescence Spectrometer

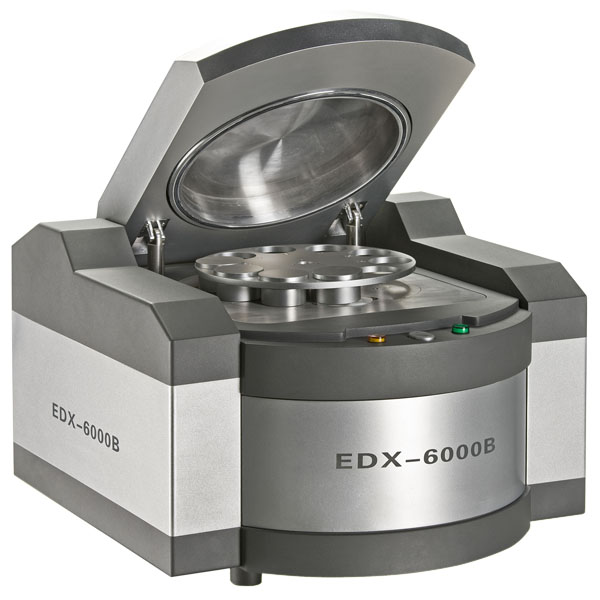

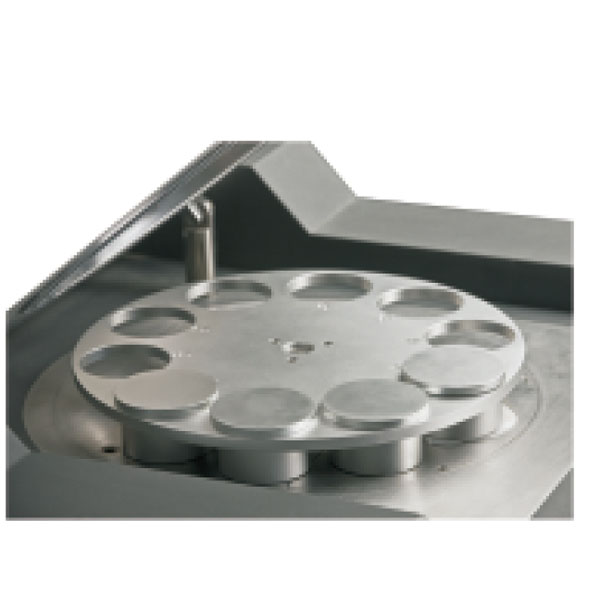

EDX6000B X-ray Fluorescence spectrometer uses convinient 7 sample carousel for simultanious analysis of multiple samples. The instrument features low-energy X-rays specififcally for excitation of light elements such as Si, S, Na and Mg; and with automatic spectrum stabilizing EDX6000B delivers accurate results for light elements testing. UHRD detector provide excellent energy linearity, energy resolution and high peak-background ratio. Thanks to multi-parameter linear regression method, the absorption and enhancement effects between elements are reduced.
Features
- High-performance electronic cooling UHRD detector
- Automatic collimators and filters
- Built-in SNE (Signal to Noise Enhancer)
- Intelligent full-element analysis analytical software
- Multiple Software options
- Excellent light elements identification- Al, Cl, Br
Application Fields
- Full-elemental analysis- Na-U
- RoHS/WEEE Analysis
- Mineral Analysis
- Alloy Analysis
- Cement Analysis
| Technical Specifications | |
|---|---|
| Measurable elements: | Sodium( Na ) - Uranium ( U ) |
| Precision: | up to 0.05% |
| Analysis Range: | ppm up to 99.99% |
| Energy Resolution | 150±5eV |
| Power: | AC 220V ± 5V or AC 110V ± 5V. AC purified power supply |
| X-Ray Tube voltage: | 5KV-50KV |
| X-Ray Tube current: | 50 uA-1000 uA |
| Plating thickness measurement: | more than 11 layers, up to 0.005μm each layer |
| Sample types: | powder, solid and liquid |
| Weight: | 75 kg |
