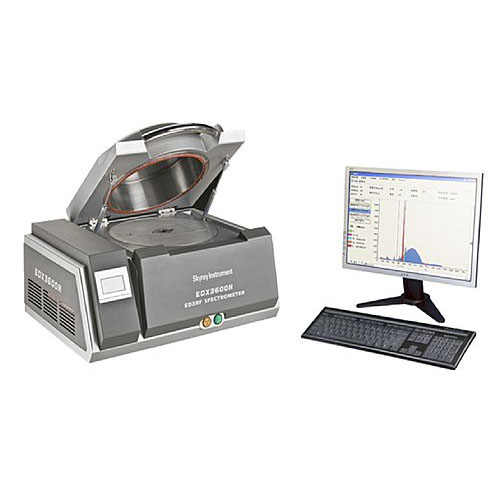

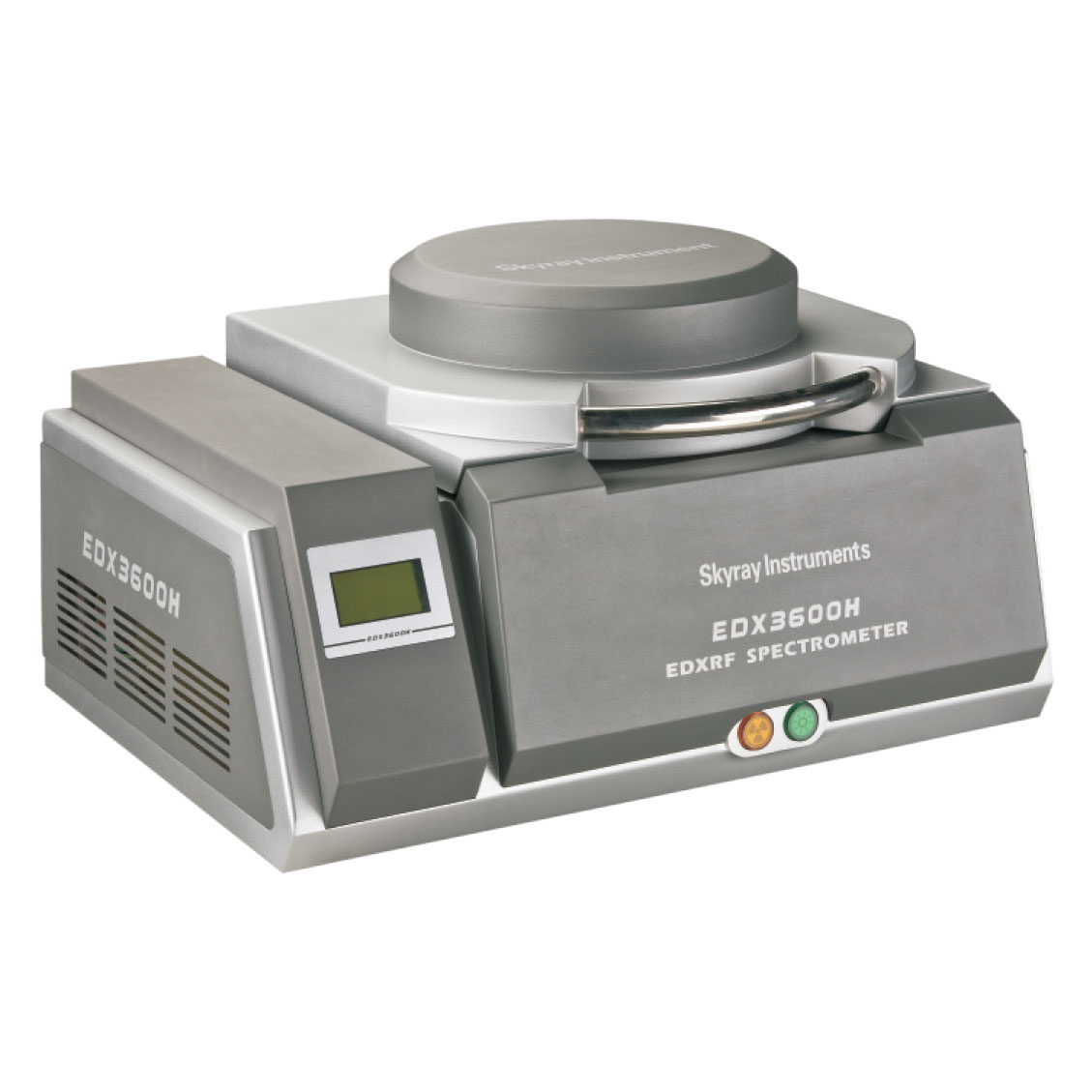

EDX3600H X-ray Fluorescence Spectrometer

EDX3600H X-Ray Fluorescence Spectrometer is an all-in-one XRF capable of virtually any elemental application. EDX3600H comes standard with best in class UHRD/SDD detector and advanced vacuum system and can be used for multiple testing types including Mineral, Alloy, RoHS, Plating Thickness and custom applications.

  • High-performance electronic cooling UHRD detector or Silicon Drift SDD Detector- Application specific
  • Automatic collimators and filters
  • Built-in SNE (Signal to Noise Enhancer)
  • Intelligent RoHS analytical software
  • Multiple Software options
  • Advanced Vacuum System
  • Excellent light elements identification- Al, Cl, Br
Application Fields
  • Full-elemental analysis- Na-U
  • RoHS/WEEE Analysis
  • Mineral Analysis
  • Alloy Analysis
  • Plating Thickness
  • Custom calibrations for virtually any application
Technical Specifications
Measurable elements: Sodium( Na ) - Uranium ( U )
Precision: up to 0.05%
Analysis Range: ppm up to 99.999%
Energy Resolution 140±5eV
Power: AC 220V ± 5V or AC 110V ± 5V. AC purified power supply
X-Ray Tube voltage: 5KV-50KV
X-Ray Tube current: 50 uA-1000 uA
Sample chamber size: 32cm x 32cm x 10cm
Size: 66cm x 51cm x 35cm
Weight: 65 kg
