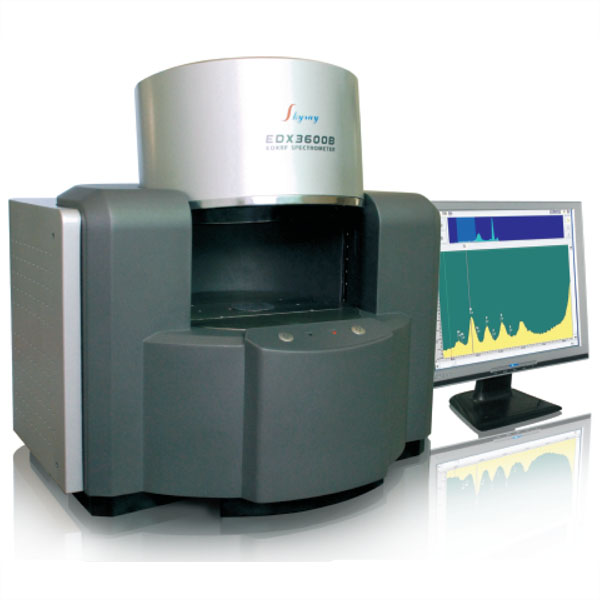

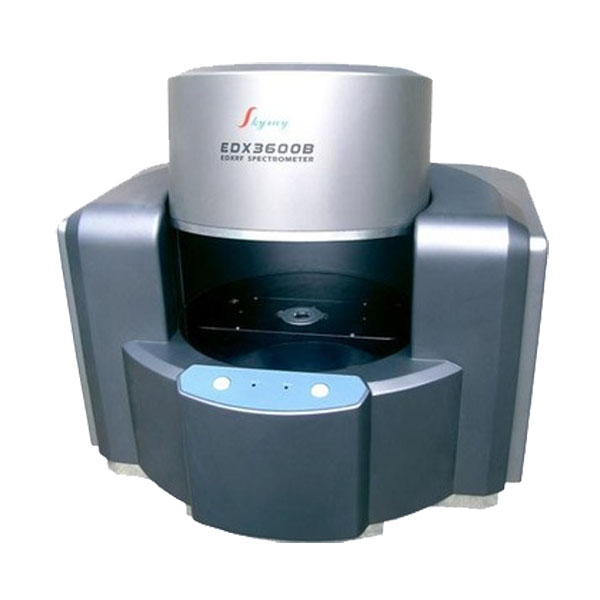

EDX3600B X-ray Fluorescence Spectrometer

EDX3600B X-ray Fluorescence spectrometer uses XRF technology for rapid and accurate elemental analysis of cement and steel. The technology features low-energy X-rays specififcally for excitation of light elements such as Si, S, Na and Mg; and with automatic spectrum stabilizing EDX3600B delivers accurate results for light elements testing. UHRD detector provide excellent energy linearity, energy resolution and high peak-background ratio. Thanks to multi-parameter linear regression method, the absorption and enhancement effects between elements are reduced.

  • High-performance electronic cooling UHRD detector
  • Automatic collimators and filters
  • Built-in SNE (Signal to Noise Enhancer)
  • Intelligent full-element analysis analytical software
  • Multiple Software options
  • Excellent light elements identification- Al, Cl, Br
Application Fields
  • Full-elemental analysis- Na-U
  • RoHS/WEEE Analysis
  • Mineral Analysis
  • Alloy Analysis
  • Plating Thickness
  • Cement Analysis
Technical Specifications
Measurable elements: Sodium( Na ) - Uranium ( U )
Precision: up to 0.05%
Analysis Range: ppm up to 99.99%
Energy Resolution 150±5eV
Power: AC 220V ± 5V or AC 110V ± 5V. AC purified power supply
X-Ray Tube voltage: 5KV-50KV
X-Ray Tube current: 50 uA-1000 uA
Plating thickness measurement: more than 11 layers, up to 0.005μm each layer
Sample types: powder, solid and liquid
Weight: 75 kg
