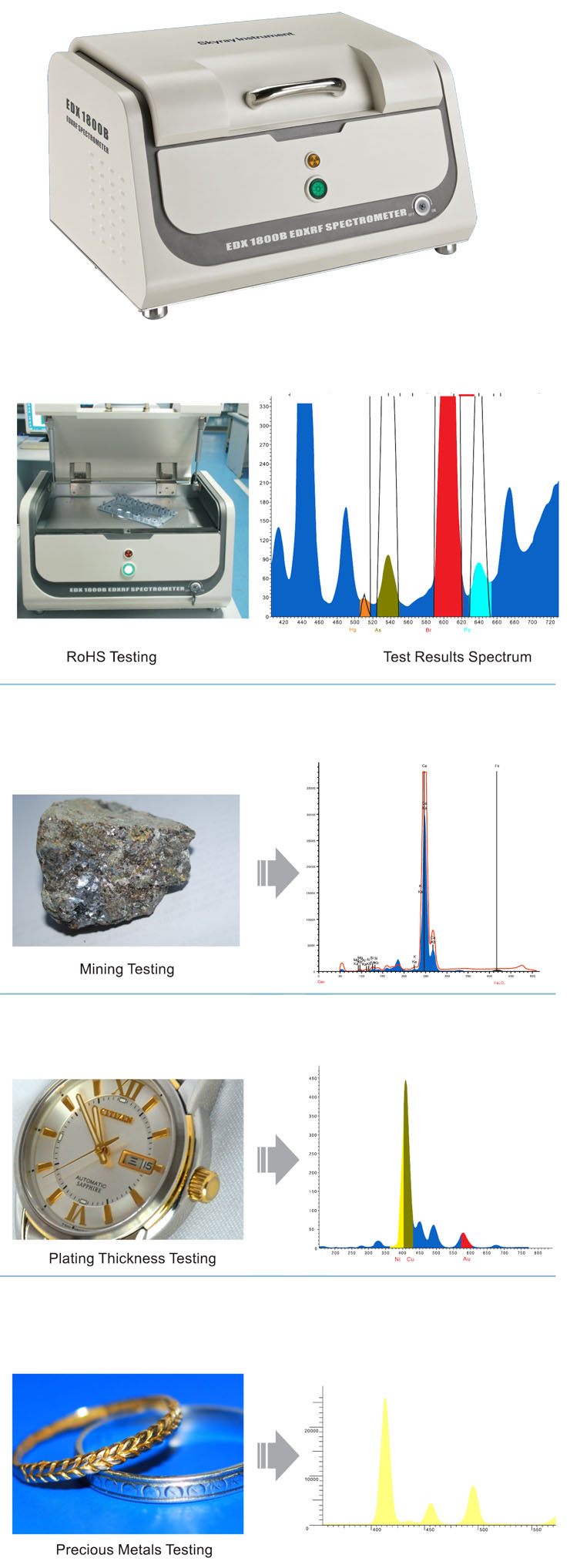

EDX1800B RoHS X-ray Fluorescence Spectrometer

EDX1800B X-Ray Fluorescence Spectrometer is specifically designed for RoHS analysis and quality control. Manufacturers seeking compliance with RoHS / WEEE directive can quickly and non-destructively screen their products for Hazardous substances and ensure the safety of their products.

Features
  • Specifically developed for RoHS testing: Lead (Pb), Mercury (Hg), Cadmium (Cd), Hexavalent Chromium and other hazardous elements
  • Automatic collimators and filters
  • Built-in SNE (Signal to Noise Enhancer)
  • Intelligent RoHS analytical software
  • Optional Plating-thickness analysis software
  • Variable non-linear regression
Application Fields
  • RoHS and Thickness measurement of metal plating
  • Manufacturers who need to comply with RoHS Directive
  • Electroplating industry
Technical Specifications
Measurable elements: Sulfur ( S ) - Uranium ( U )
Limits of Detection 1 ppm
Analysis Range: ppm up to 99.999%
Ambient temperature: 15°C-30°C
Repeatability: 0.1%
Energy Resolution 160±5eV
Power: AC 220V ± 5V or AC 110V ± 5V. AC purified voltage power supply

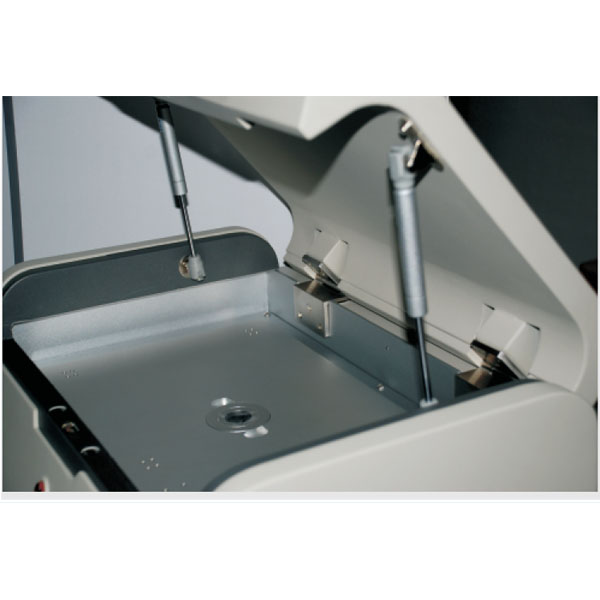

Sample chamber size: 44cm x 30cm x 5cm
Size: 55cm x 41cm x 32cm
Weight: 45 kg
